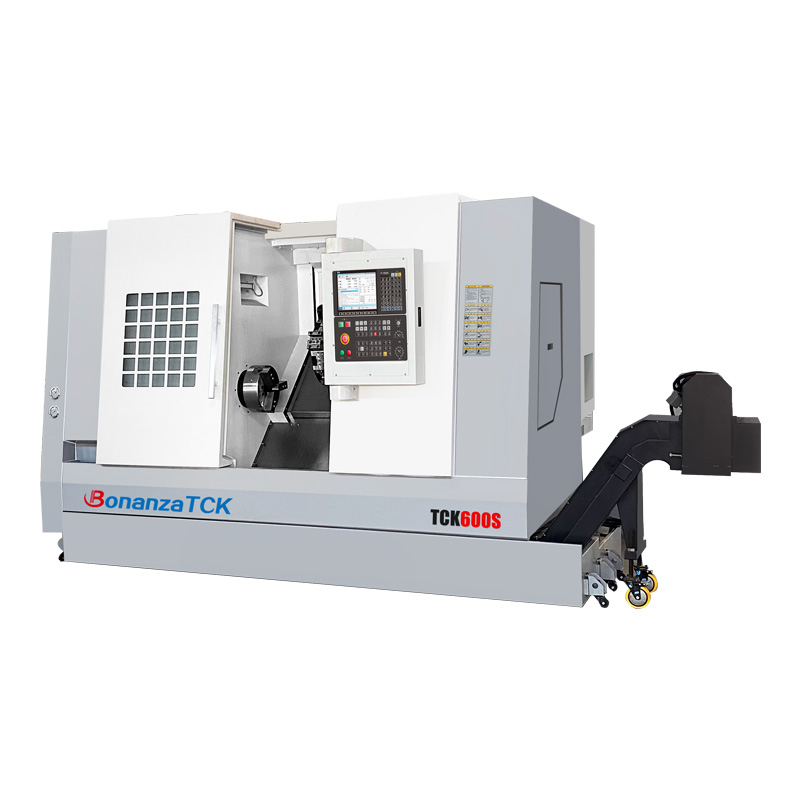

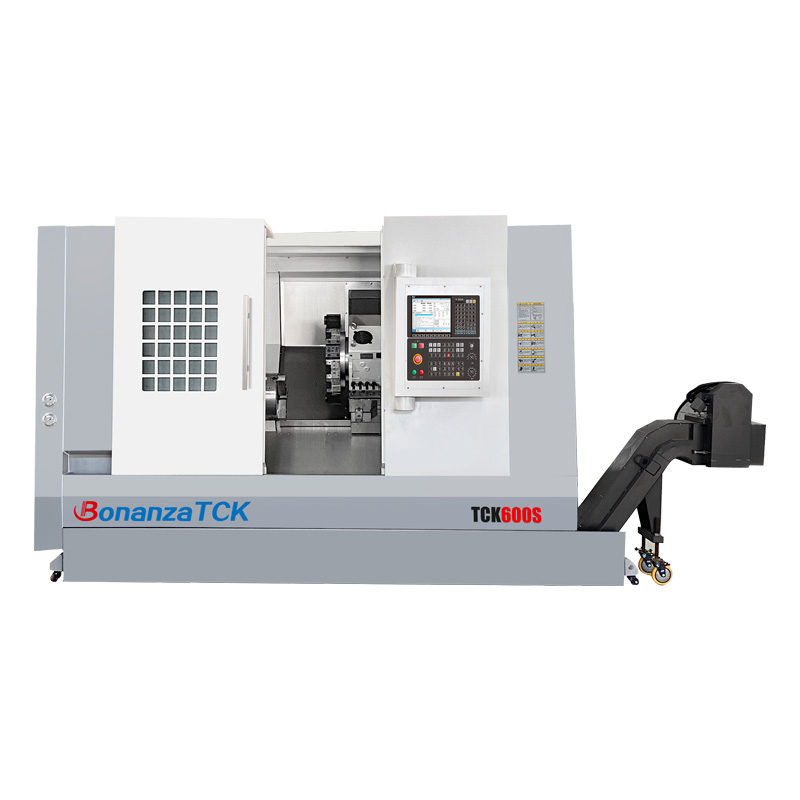

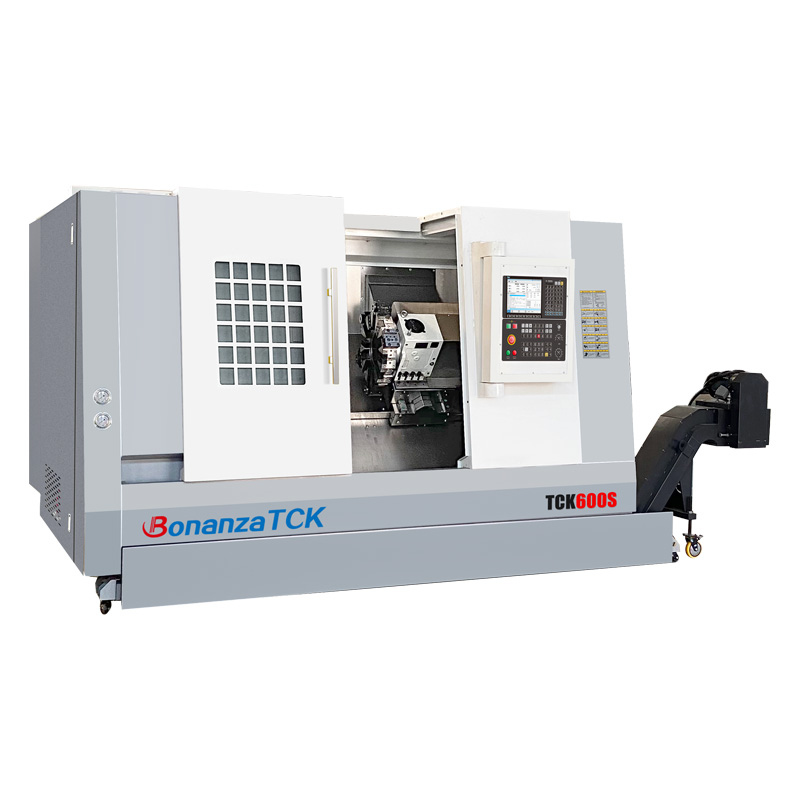

| speicifications | TCK600S |
| Max. turning diameter on bed(mm) | 600 |
| Max. cutting length(mm) | 500 |
| Max. cutting diameter(mm) | 550 |
| Standard cutting diameter(mm) | 430 |
| Max. turning diameter on the skateboard(mm) | 380 |
| Spindle nose type | A2-8 |
| Main shaft hole diameter(mm) | 80 |
| Max. over bar diameter(mm) | 70 |
| Spindle speed range（r/min） | 3500 |
| Spindle motor power（KW） | 18.5 |
| Chuck type（inch） | 10 |
| X-axis travel(mm) | 300 |
| Z-axis travel(mm) | 550 |
| Standard knife holder form | Horizontal 12 station |
| machine size (mm) | 2790L*1900W*1850H |
| Machine weight (KG) | 4300 |
China's largest turning-milling composite production base.
