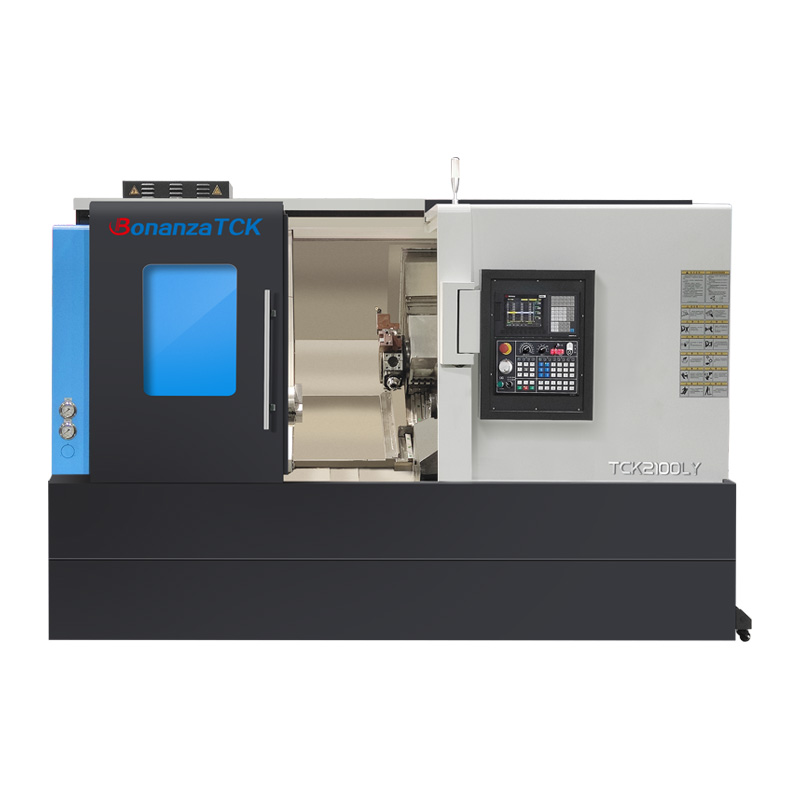

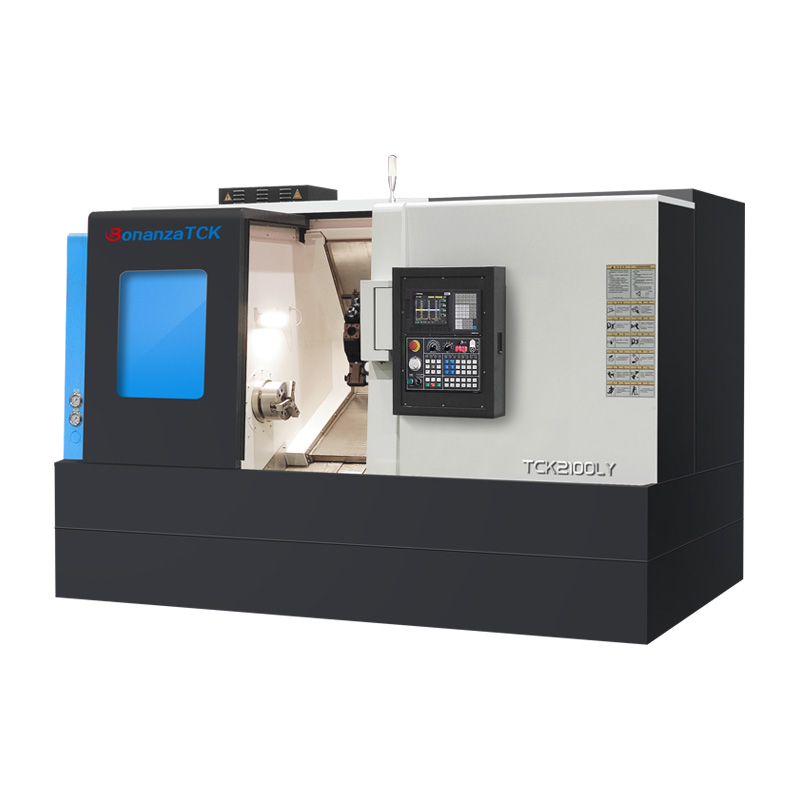

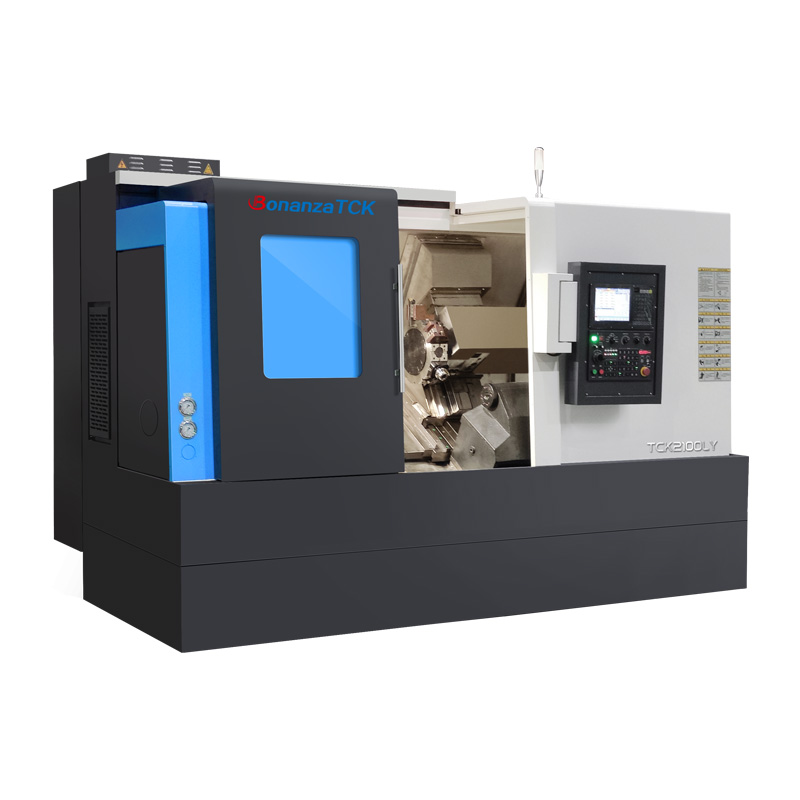

TCK2100LY CNC Turning & Milling Machine

Interpolated Y structure, built-in oil-water separation, turning and milling composite development trend.
The spindle adopts a high-torque 30KW electric spindle with high precision and low-speed constant torque.

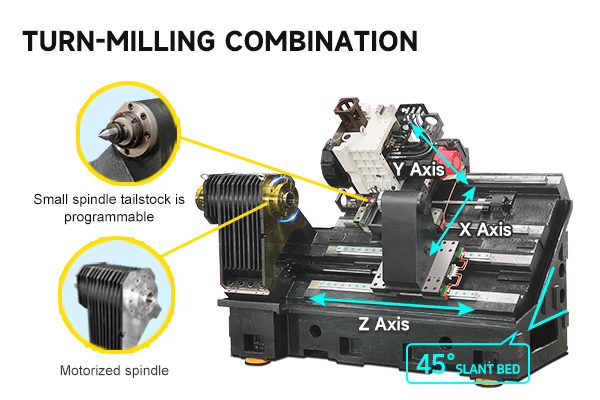

The integral machine bed with a 30° bevel angle has stable cutting force and a programmable hydraulic tailstock.

Max cutting diameter
350 mm
Main shaft hole diameter
65 mm
Max over bar diameter
50 mm

Details
Specifications
Related Products
Contact Us
Inquiry

Details


Specifications

speicifications	TCK2100LY
Max. turning diameter on bed(mm)	650
Max. cutting length(mm)	500
Max. cutting diameter(mm)	350
Spindle nose type	A2-6
Main shaft hole diameter(mm)	65
Spindle speed range（r/min）	4500/5000
Spindle motor power（KW）	30/11
X-axis travel(mm)	280
Z-axis travel(mm)	550
Y-axis travel(mm)	±50
Knife holder form	12 station power knife tower
machine size (mm)	3293L1951W2329H
Machine weight (KG)	4000
