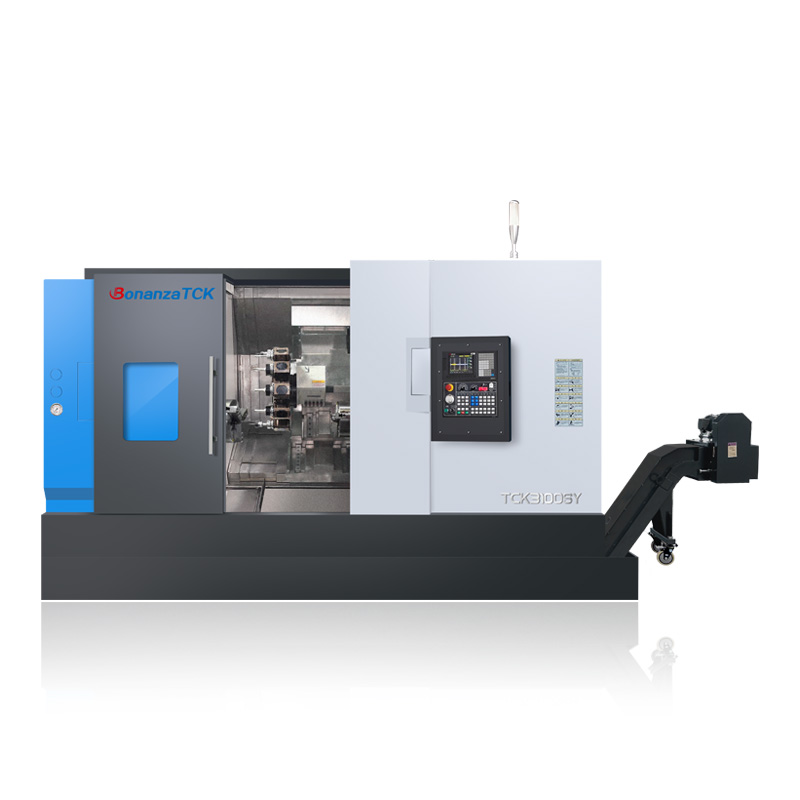

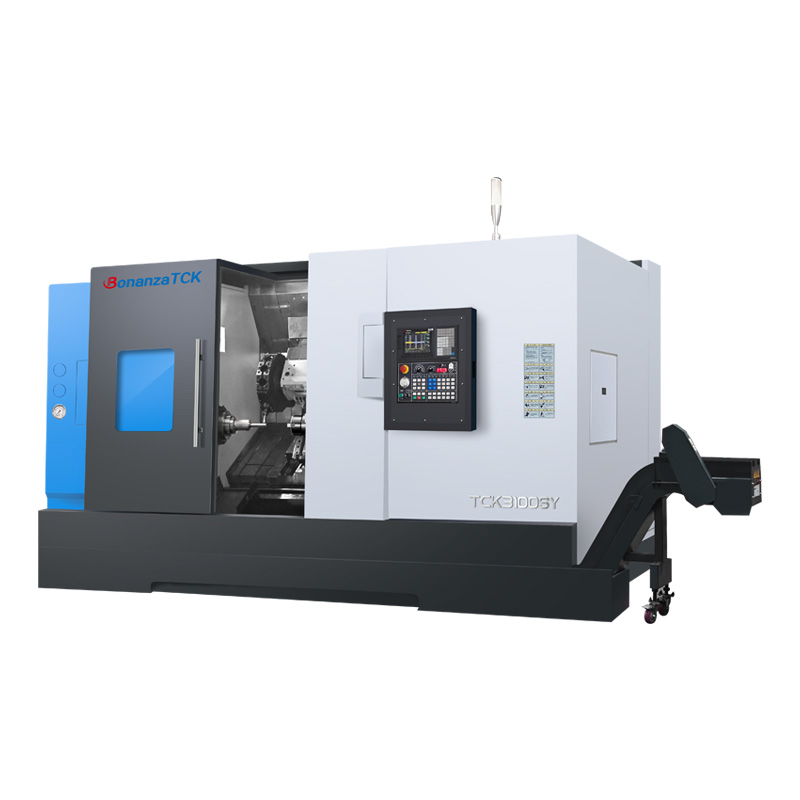

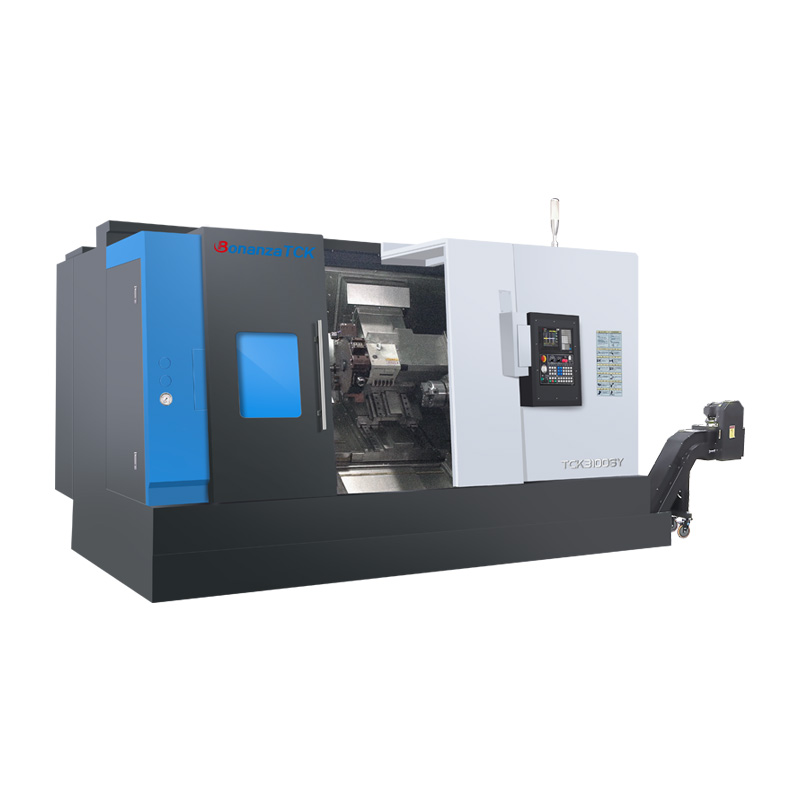

TCK3100SY CNC Turning & Milling Machine

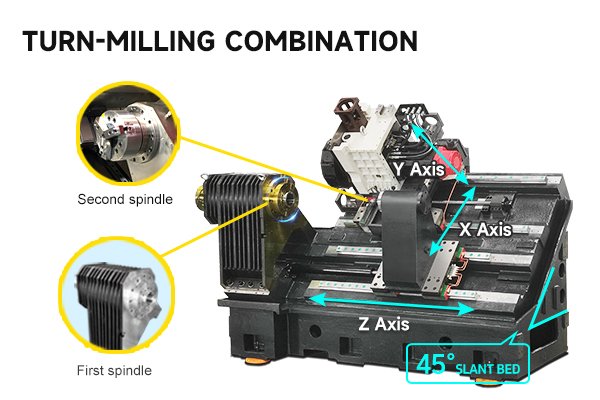

Introducing our advanced dual-spindle turning and milling compound: With precise dynamic docking accuracy and self-developed mirror programming, it streamlines complex operations. Equipped with a customized BMT65 large cutterhead powered turret, it matches the milling capability of the 855 machining center. Remarkably, it combines the value of multiple machinery setups and labor costs, offering unparalleled efficiency.

Max cutting diameter
500 mm
Main shaft hole diameter
85 mm
Max over bar diameter
75 mm

Details
Specifications
Related Products
Contact Us
Inquiry

Details


Specifications

speicifications	TCK3100SY
Max. turning diameter on bed(mm)	750
Max. cutting length(mm)	1000
Max. cutting diameter(mm)	500
Spindle nose type	A2-8(6)
Main shaft hole diameter(mm)	85
Spindle speed range（r/min）	3000
Sub-Spindle speed range（r/min）	4000
Spindle motor power（KW）	37
Sub-Spindle motor power（KW）	30
X/Y/Z-axis fast movement speed(mm)	12/12/16
X-axis travel(mm)	400
Z-axis travel(mm)	1350
Y-axis travel(mm)	±100
Standard knife holder form	12 station power knife tower
machine size (mm)	4450L2320W2713H
Machine weight (KG)	10000
