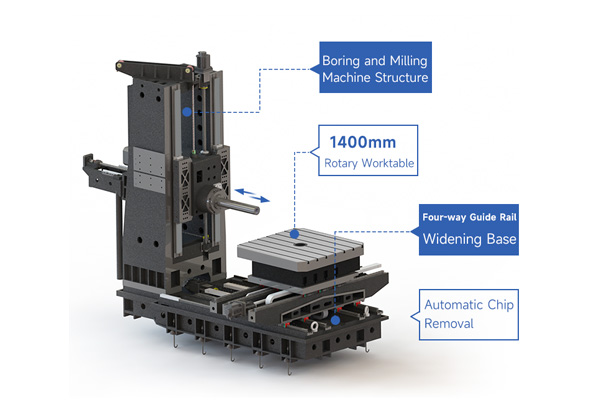

HMC1400S Horizontal Machining Center

Adopting a sturdy and stable structural design, it can provide higher machining accuracy and stability.
It can support multi axis machining and achieve one-time clamping of complex workpieces, improving production efficiency.

Work table size
1400*1400 mm
X/Y/Z-axis travel
X:1800 Y:1100 Z:1300
Spindle taper
BT 50 φ150

Details
Specifications
Related Products
Contact Us
Inquiry

Details


Specifications

speicifications	HMC1400S
Table size （mm）	1400×1400
Max. worktable load（kg）	4000
T-slot (numberwidthdistance)	7-22-125
X-axis travel(mm)	1800
Y-axis travel(mm)	1300
Z-axis travel(mm)	1500
X-axis Fast shift speed(m/min)	14
Y-axis Fast shift speed(m/min)	12
Z-axis Fast shift speed(m/min)	14
Spindle taper hole	BT50-45°
Spindle speed (rpm)	2000
Machine weight (KG)	19500
