HMC1815 Horizontal Machining Center

Suitable for processing complex polyhedra and capable of meeting the processing requirements of multiple faces and angles.

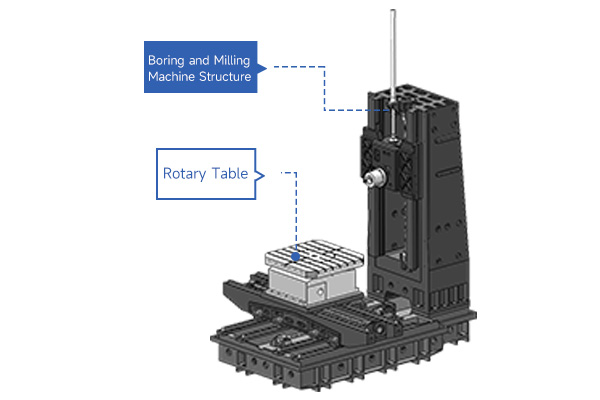

Adopting a stable structural design with high rigidity and stability, it can ensure machining accuracy and surface quality
Equipped with high-speed electric spindle, it can meet the requirements of high-speed machining and high-precision machining.
  • Work table size
    2000*900 mm
  • X/Y/Z-axis travel
    X:1800 Y:1400 Z:900
  • Spindle taper
    BT 50 φ190
HMC1815 Horizontal Machining Center

Details


Specifications

speicificationsHMC1815
Table size （mm）2000×900
Max. worktable load（kg）1600
T-slot (number*width*distance)5-22-165
X-axis travel(mm)1800
Y-axis travel(mm)1400
Z-axis travel(mm)900
X-axis Fast shift speed(m/min)20
Y-axis Fast shift speed(m/min)12
Z-axis Fast shift speed(m/min)20
Spindle taper holeBT50Φ190
Spindle speed (rpm)6000
Machine weight (KG)15000
