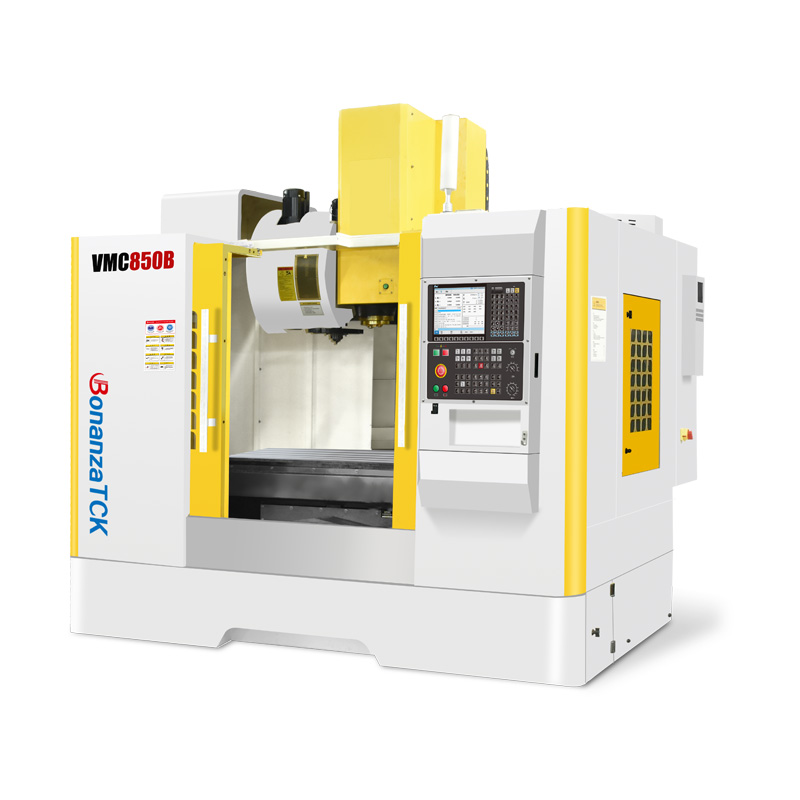

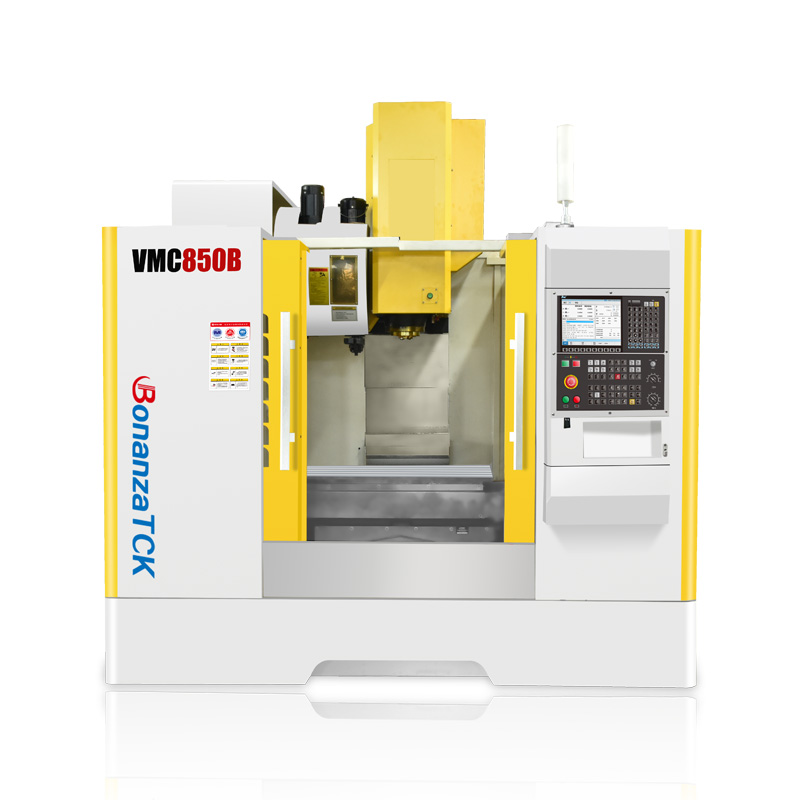

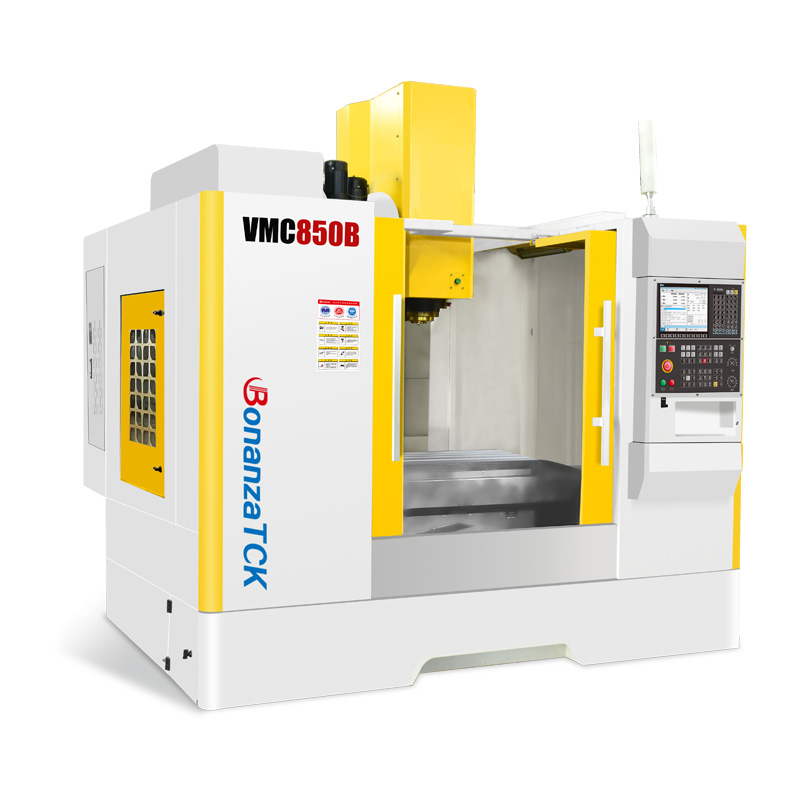

| speicifications | VMC850B | VMC850L |
| Table size （mm） | 1050×500 | 1000×500 |
| Max. worktable load（kg） | 600 | 450 |
| X-axis travel(mm) | 800 | 800 |
| Y-axis travel(mm) | 500 | 500 |
| Z-axis travel(mm) | 500 | 500 |
| X-axis Fast shift speed(m/min) | 18 | 24 |
| Y-axis Fast shift speed(m/min) | 18 | 24 |
| Z-axis Fast shift speed(m/min) | 12 | 18 |
| Spindle taper hole | BT40Φ150 | BT40Φ150 |
| Spindle speed (rpm) | 8000 | 8000 |
| machine size (mm) | 2600L*2300W*2300H | 2600L*2400W*2300H |
| Machine weight (KG) | 6000 | 6000 |
China's largest turning-milling composite production base.
