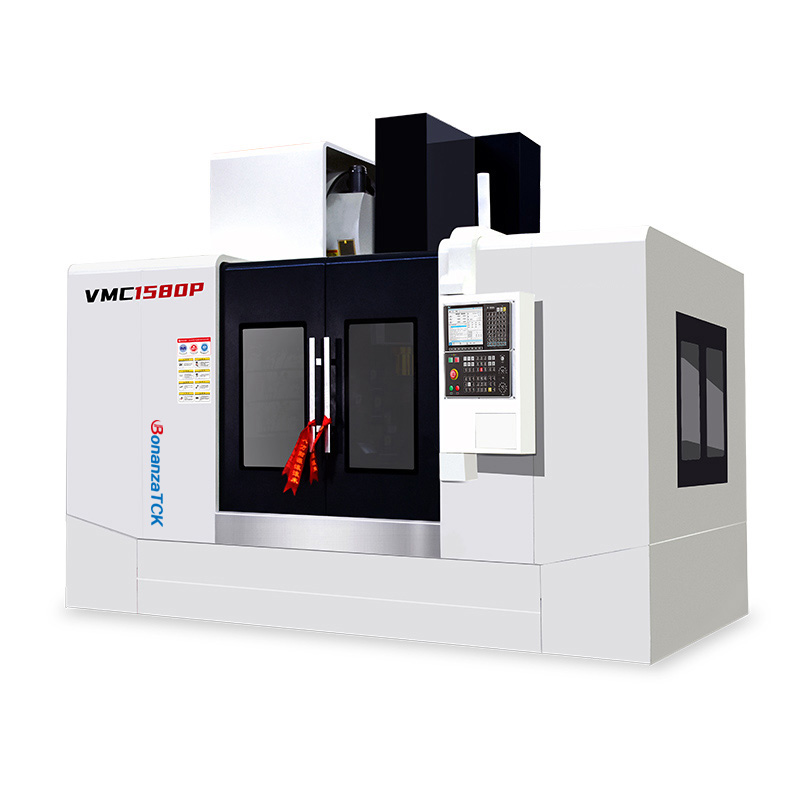

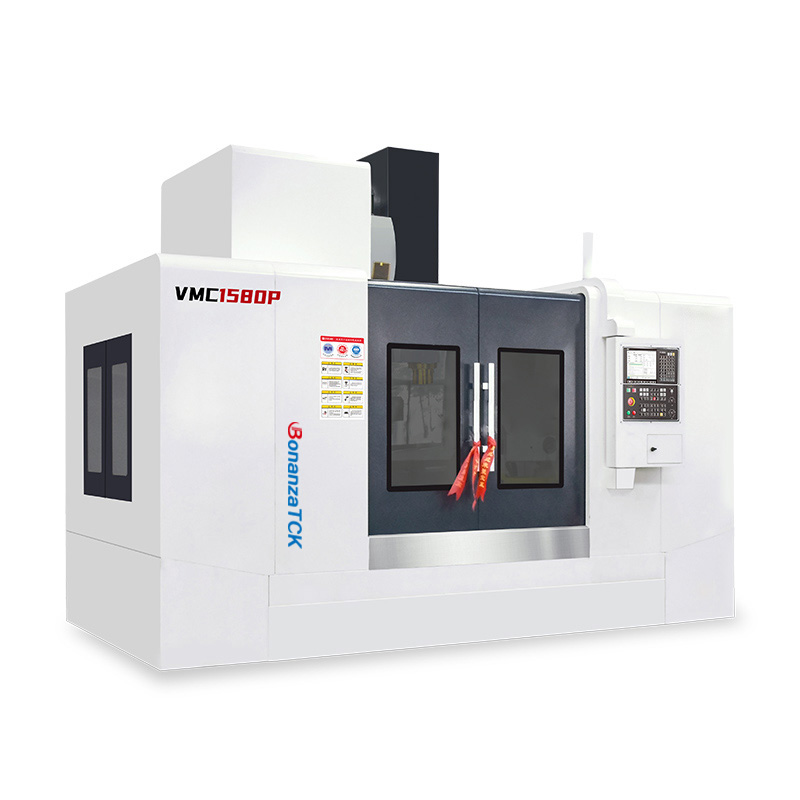

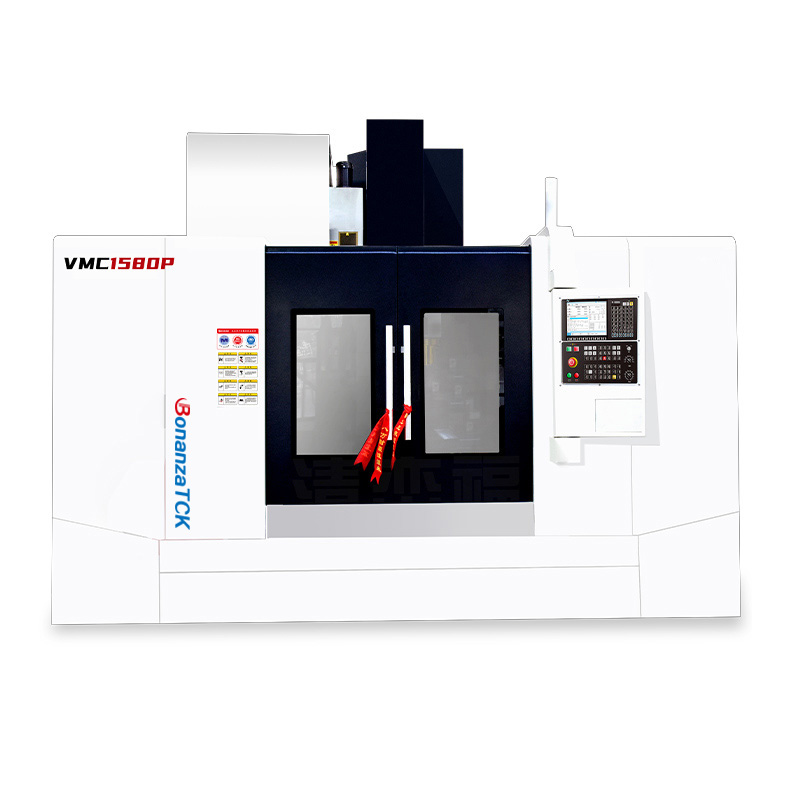

VMC1580 Vertical Machining Center

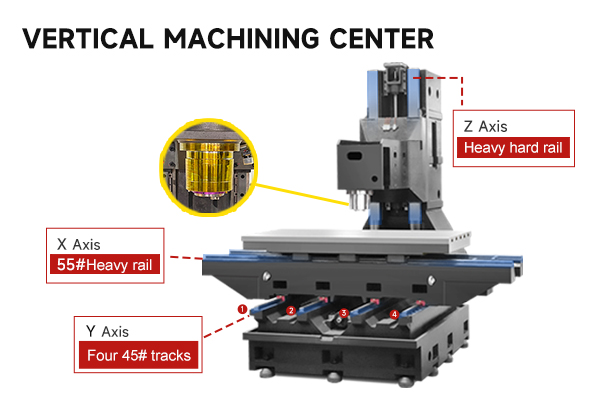

Equipped with a 15KW main motor as standard, the main spindle adopts BT50-155 equipment with strong rigidity and fast processing efficiency. The Y-axis four guide rails increase contact surfaces to ensure stable and rigid bed body, which can support processing of workpieces with larger loads.
  • Work table size
    1400*700mm
  • X/Y/Z-axis travel
    1300*700*750 mm
  • Spindle taper
    BT40-150

Details


Specifications

speicificationsVMC1580
Table size （mm）1700×800
Max. worktable load（kg）1500
X-axis travel(mm)1500
Y-axis travel(mm)800
Z-axis travel(mm)700
X-axis Fast shift speed(m/min)20
Y-axis Fast shift speed(m/min)20
Z-axis Fast shift speed(m/min)14
Spindle taper holeBT50Φ155
Spindle speed (rpm)6000
machine size (mm)4300L*3400W*2800H
Machine weight (KG)12000
